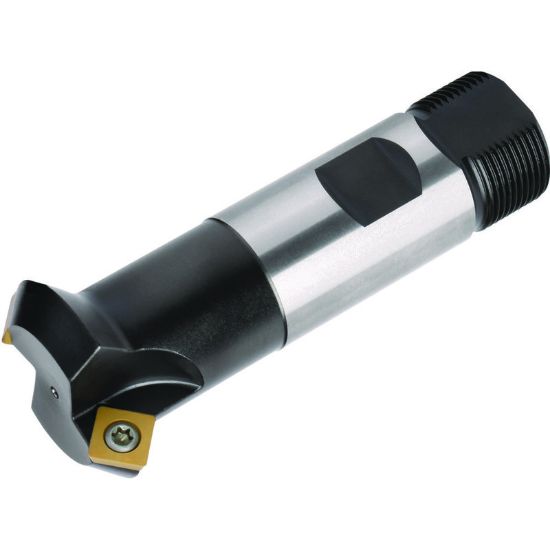

Picture of WIDIA/KENNAMETAL 12292511000 45.0° Milling Cutter 1.764 Cutter Diameter End Mill 1.259

WIDIA/KENNAMETAL 12292511000 45.0° Milling Cutter 1.764 Cutter Diameter End Mill 1.259

ANSI: 12292511000

ISO: 12292511000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2022630
Delivery date: 3-5 days
$258.24

Features And Benefits

Chamfer milling in steel, stainless steel, and cast iron.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Chamfering, Back Chamfering, Face Milling
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 1.2600 32.00MM
Neck Dia 1.2400
Depth Of Cut Max 0.2520
Chamfer Angle 45.0°
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Overall Len 3.9370 100.00MM
Cutter Dia 1.7640 44.81MM
Shank/Pilot Dia 1.2598 32.00MM
Insert Size Ic 12 "43"
Machine Side Connection Type Weldon
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Hand R/L Right
Coolant Thru No
