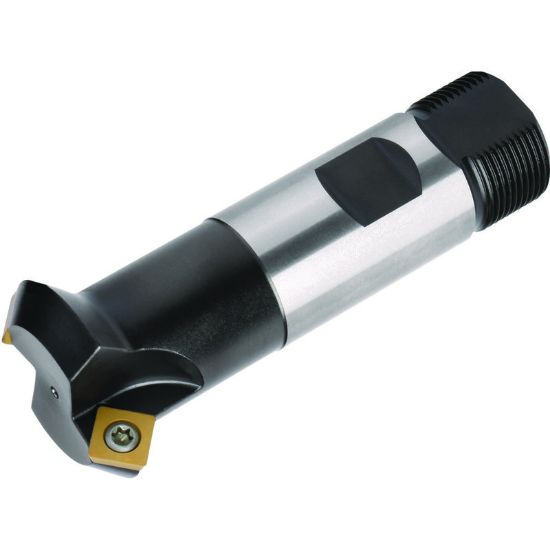

Picture of WIDIA/KENNAMETAL 12292510400 45.0° Milling Cutter 1.134 Cutter Diameter Weldon 0.629

WIDIA/KENNAMETAL 12292510400 45.0° Milling Cutter 1.134 Cutter Diameter Weldon 0.629

ANSI: 12292510400

ISO: 12292510400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2022628
Delivery date: 3-5 days
$228.83

Features And Benefits

Chamfer milling in steel, stainless steel, and cast iron.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Chamfering, Face Milling, Back Chamfering
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Overall Len 2.9530 75.01MM
Neck Dia 0.6100
Depth Of Cut Max 0.2520
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Chamfer Angle 45.0°
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Cutter Dia 1.1340 28.80MM
Insert Size Ic 12 "43"
Machine Side Connection Type Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
