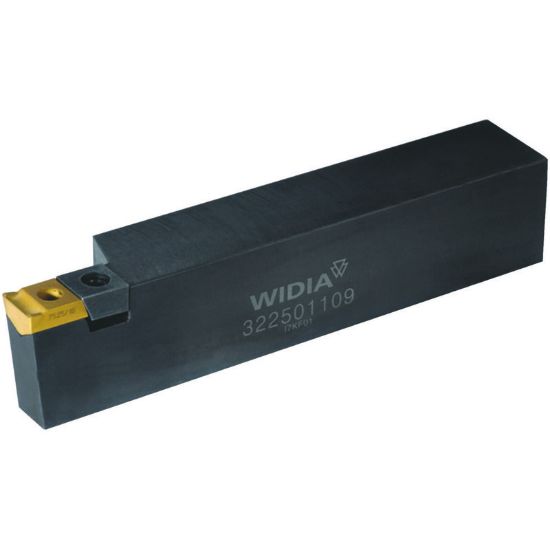

Picture of WIDIA/KENNAMETAL 12250111000 Screw On Cut Off,Grooving Stick Tool Square 1.574 Shank

WIDIA/KENNAMETAL 12250111000 Screw On Cut Off,Grooving Stick Tool Square 1.574 Shank

ANSI: 12250111000

ISO: 12250111000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2021722
Delivery date: 3-5 days
$246.07
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Size 1.5748 40.00MM
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 7.8740 200.00MM
Flutes/Inserts 1
Tool Width 0.6299
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Left
Insert Style LG
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
Fasteners & Connectors
Insert Screw 12148574000
Lock Pin 12148060800
Seat Screw 12148094700
