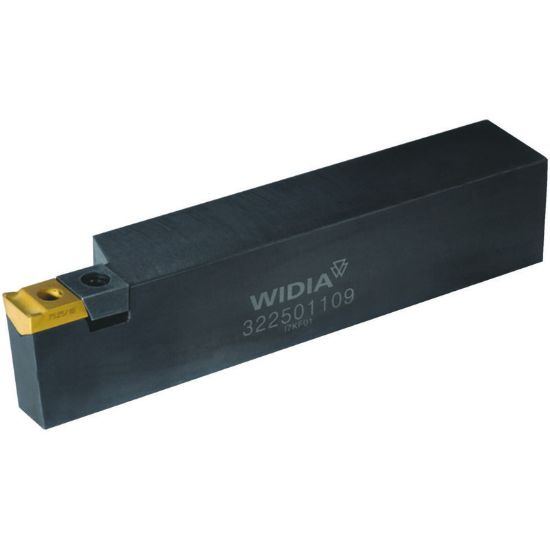

Picture of WIDIA/KENNAMETAL 12250110400 Screw On Cut Off,Grooving Stick Tool Square 1.259 Shank

WIDIA/KENNAMETAL 12250110400 Screw On Cut Off,Grooving Stick Tool Square 1.259 Shank

ANSI: 12250110400

ISO: 12250110400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2008144
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Shipping State Pennsylvania
Insert Type Positive
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Tool Width 0.3937
Insert Size Ic 10
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.6929 170.00MM
Shank/Pilot Dia 1.2598 32.00MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 1
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
Insert Style LG
Coolant Thru No
Fasteners & Connectors
Insert Screw 12148574900
Lock Pin 12148060600
Seat Screw 12148094400
