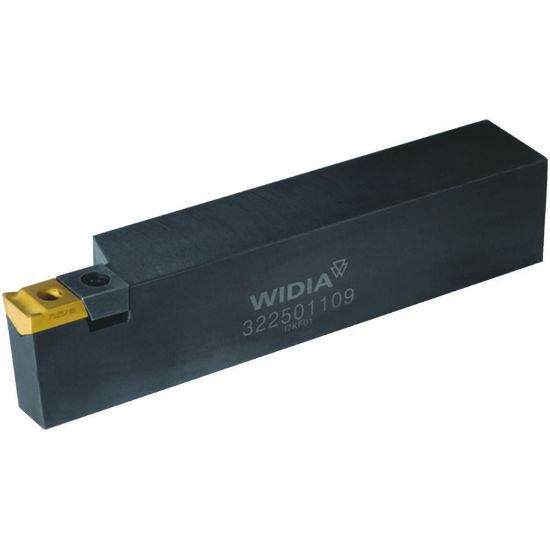

Picture of WIDIA/KENNAMETAL 12250110200 Screw On Cut Off,Grooving Stick Tool Square 1.259 Shank

WIDIA/KENNAMETAL 12250110200 Screw On Cut Off,Grooving Stick Tool Square 1.259 Shank

ANSI: 12250110200

ISO: 12250110200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2022447
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Package Size 1
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 1
Shank/Pilot Dia 1.2598 32.00MM
Tool Width 0.3150
Insert Size Ic 8
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.6929 170.00MM
Cutting & Machining Properties
Insert Style LG
Coolant Thru No
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
Hand R/L Left
Fasteners & Connectors
Insert Screw 12148574100
Seat Screw 12148094300
Lock Pin 12148060600
