Picture of WIDIA/KENNAMETAL 12157301800 80.0° Insert Boring Bar 0.629

WIDIA/KENNAMETAL 12157301800 80.0° Insert Boring Bar 0.629

ANSI: 12157301800

ISO: 12157301800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2030994
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

WIDIA LR SERIES BORING BAR

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1

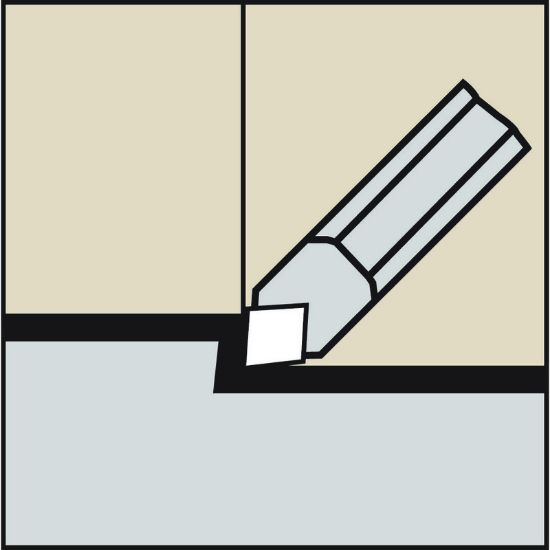

Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Lead Angle 50°
Overall Len 3.1496 80.00MM
Flutes/Inserts 1
Insert Size Ic 09 "32"
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Coolant Thru No
Inter/Extern Internal
