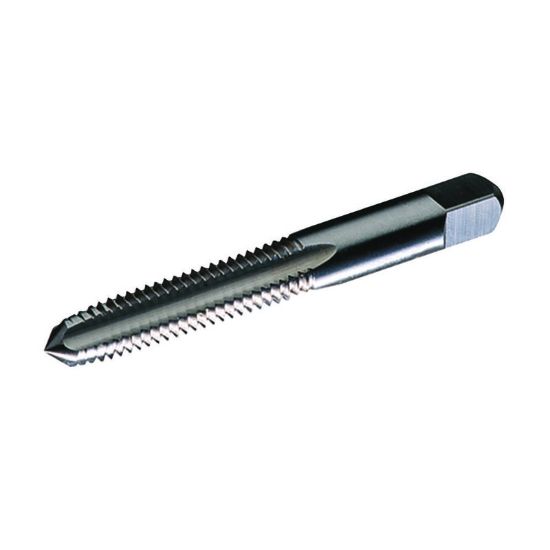

WIDIA/KENNAMETAL 11911 M24-3.00MM Hand Tap Plug 3.0P-5.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11911
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Thread Size M24
Thread Pitch 3.00MM
Tool Material Steel
Overall Len 4.9060 124.61MM
Tap Square 0.5700
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Length Type Standard
Tap Style Hand Tap
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Thread Type Metric
Cut Rating <30HRC Steel
Shank/Pilot Dia 0.7600 19.30MM
Tap Type Plug
Thread Limit 6H
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
