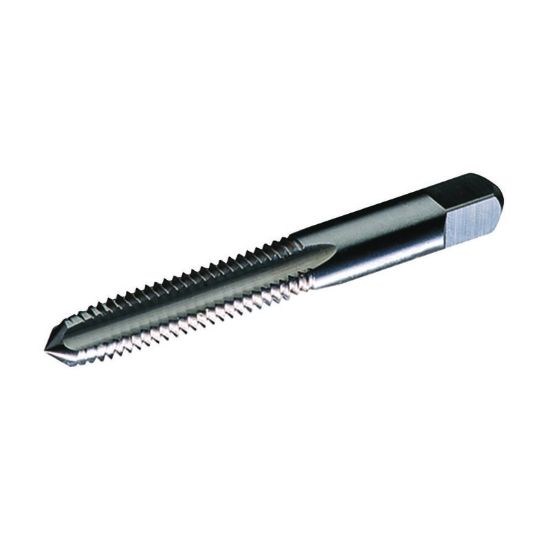

WIDIA/KENNAMETAL 11908 M18-2.50MM Hand Tap Plug 3.0P-5.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11908
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Ohio
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Tool Material Steel
Overall Len 4.0310 102.39MM
Tap Square 0.4060
Thread Type Metric
Dimension Standard ANSI/ANSI
Flutes/Inserts 4
Tap Style Hand Tap
Thread Size M18
Thread Pitch 2.50MM
Cut Rating <30HRC Steel
Shank/Pilot Dia 0.5420 13.77MM
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Type Plug
Thread Limit 6H
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
