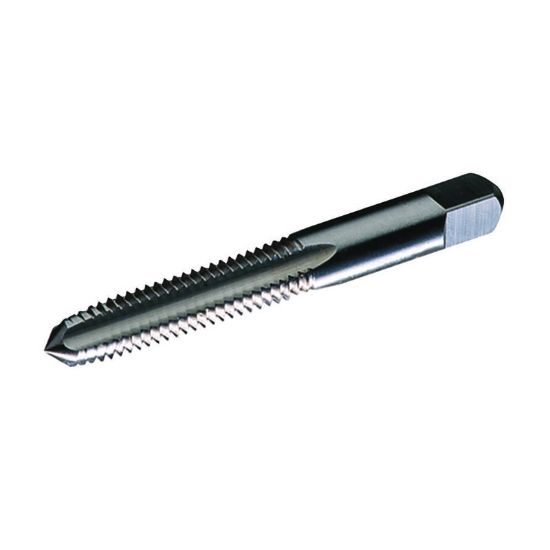

WIDIA/KENNAMETAL 11905 M14-2.00MM Hand Tap Plug 3.0P-5.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11905
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Size M14
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Dimension Standard ANSI/ANSI
Overall Len 3.5940 91.29MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Tap Chamfer 3.0P-5.5P
Thread Pitch 2.00MM
Thread Type Metric
Cut Rating <30HRC Steel
Tap Type Plug
Thread Limit 6H
Flutes/Inserts 4
Tap Style Hand Tap
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
