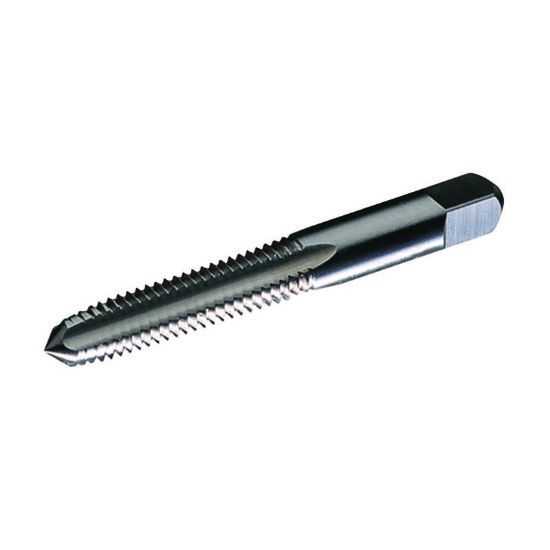

WIDIA/KENNAMETAL 11722 1-1/2-8.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11722
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Shipping State Ohio
Dimensional Specifications
Flute Direction R - Right
Shank/Pilot Dia 1.2330 31.32MM
Drill Range 1.3484 34.25MM - 1.4024 35.62MM
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Thread Size 1-1/2"
Dimension Standard ANSI/ANSI
Flutes/Inserts 6
Thread Pitch 8.00TPI
Tool Material Steel
Overall Len 6.3750 161.93MM
Tap Square 0.9250
Thread Limit 2B
Cut Rating <30HRC Steel
Thread Type NC/UNC
Tap Style Hand Tap
Tap Chamfer 1.0P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
