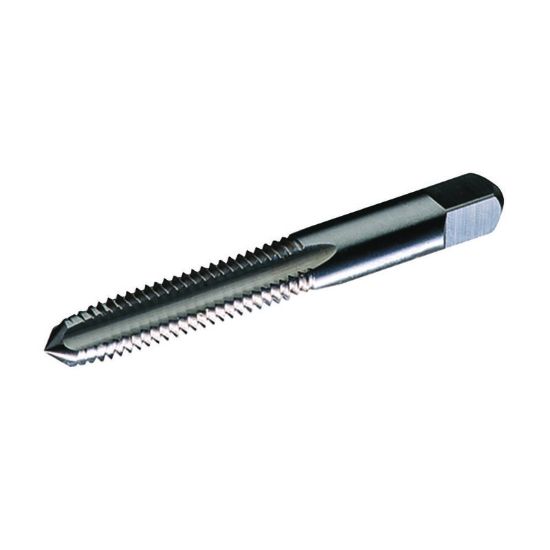

WIDIA/KENNAMETAL 11668 1-8.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11668
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Cut Tapping, Tapping, Taper Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Limit 2B
Cut Rating <30HRC Steel
Tap Chamfer 7.0P-10.0P
Dimension Standard ANSI/ANSI
Tap Type Taper
Machine Side Connection Type Tap Collet
Thread Size 1"
Thread Type NC/UNC
Flute Direction R - Right
Overall Len 5.1250 130.18MM
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Thread Pitch 8.00TPI
Tap Square 0.6000
Tool Material Steel
Shank/Pilot Dia 0.8000 20.32MM
Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
