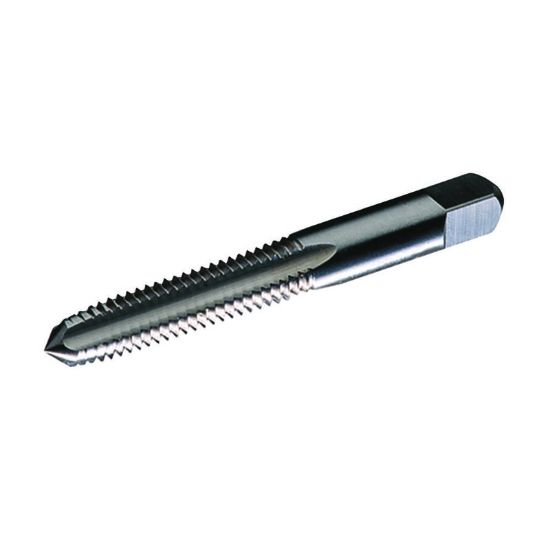

WIDIA/KENNAMETAL 11612 3/8-16.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11612
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Taper Tapping, Tapping
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Limit 2B
Cut Rating <30HRC Steel
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Tap Type Taper
Tap Chamfer 7.0P-10.0P
Thread Size 3/8"
Thread Type NC/UNC
Tap Square 0.2860
Machine Side Connection Type Tap Collet
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
