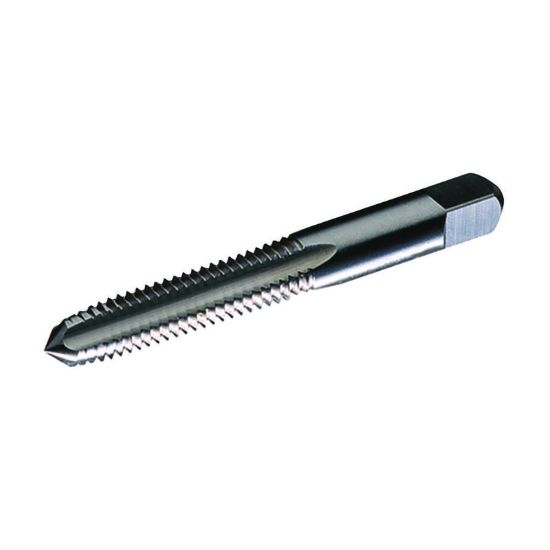

WIDIA/KENNAMETAL 11586 3/16-24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11586
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Thread Size 3/16"
Thread Pitch 24.00TPI
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit 2B
Cut Rating <30HRC Steel
Flutes/Inserts 4
Tap Square 0.1310
Tap Style Hand Tap
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Drill Range 0.1469 3.73MM
Dimension Standard ANSI/ANSI
Thread Type NS/UNS
Shank/Pilot Dia 0.2360 5.99MM
Tool Material Steel
Overall Len 2.3740 60.30MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
