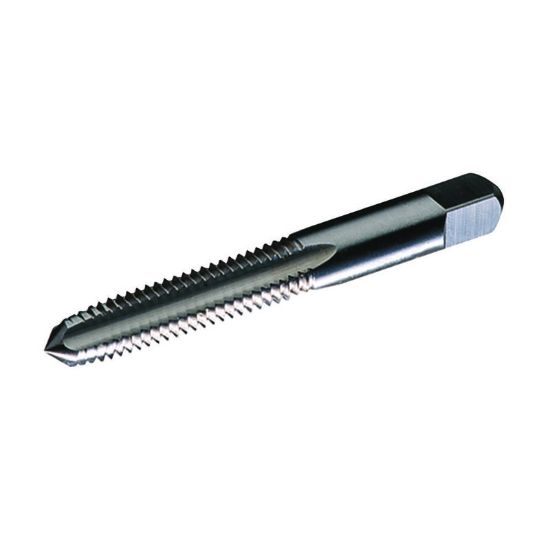

WIDIA/KENNAMETAL 11554 No.10-32.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID11554
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Ohio
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.3740 60.30MM
Thread Limit 2B
Cut Rating <30HRC Steel
Tap Square 0.1520
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Tap Type Bottoming
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
