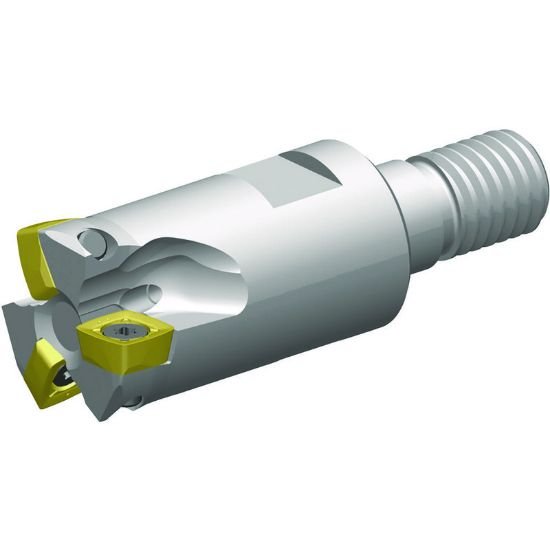

Picture of Widia/Kennametal VXF125Z05M16XP07 Milling Cutter 1.190 Cutter Diameter Screw On M16

Widia/Kennametal VXF125Z05M16XP07 Milling Cutter 1.190 Cutter Diameter Screw On M16

Part Number: WID6712880 ISO: VXF125Z05M16XP07 ANSI:VXF125Z05M16XP07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019550
Vendor: Sussex Tool and Supply
$394.74
WIDIA 6712880 Square Feed Mill Thread On SCREWM16 Positive 1.1909 30.25MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Overall Length 2.6575 67.50MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.1909 30.25MM
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.8790 22.33MM
Depth Of Cut Max 0.0354
Max RPM 41500
Max Ramp Angle 2.69°
