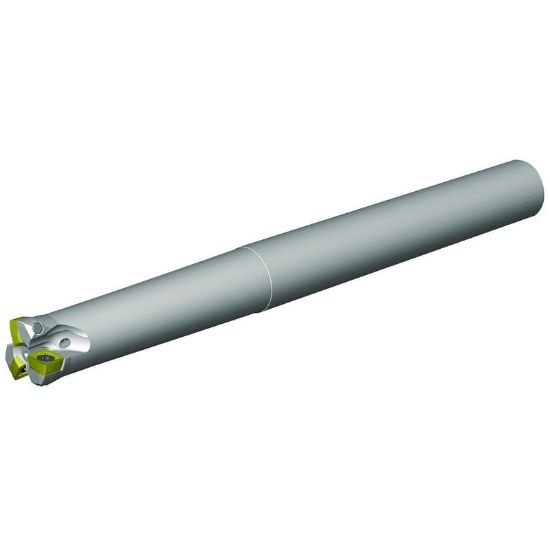

Picture of Widia/Kennametal VXF125Z05C125XP07L800 Milling Cutter 1.193 Cutter Diameter Cylindrical 1.250

Widia/Kennametal VXF125Z05C125XP07L800 Milling Cutter 1.193 Cutter Diameter Cylindrical 1.250

Part Number: WID6712974 ISO: VXF125Z05C125XP07L800 ANSI:VXF125Z05C125XP07L800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019554
Vendor: Sussex Tool and Supply
$487.61
WIDIA 6712974 Square Feed Mill End Mill Cylindrical 1.2500 Positive 1.1933 30.31MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 8.0000 203.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 1.1933 30.31MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.8791 22.33MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 41500
Neck Dia 1.1516
Max Ramp Angle 2.69°
