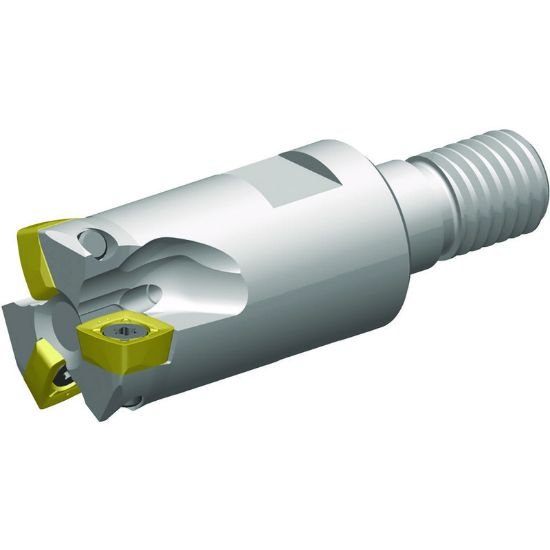

Picture of Widia/Kennametal VXF100Z04M12XP07 Milling Cutter 0.940 Cutter Diameter Screw On M12

Widia/Kennametal VXF100Z04M12XP07 Milling Cutter 0.940 Cutter Diameter Screw On M12

Part Number: WID6712879 ISO: VXF100Z04M12XP07 ANSI:VXF100Z04M12XP07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019549
Vendor: Sussex Tool and Supply
$352.46
WIDIA 6712879 Square Feed Mill Thread On SCREWM12 Positive 0.9409 23.90MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Overall Length 2.2441 57.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 0.9409 23.90MM
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.6314 16.04MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 49000
Max Ramp Angle 4.34°
