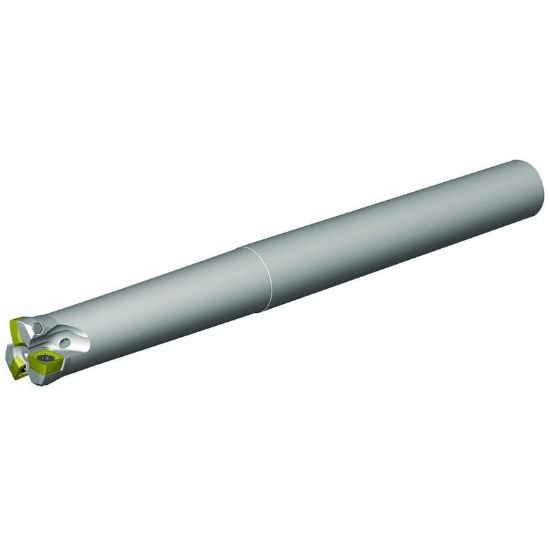

Picture of Widia/Kennametal VXF100Z04C100XP07L800 Milling Cutter 0.943 Cutter Diameter Cylindrical 1.000

Widia/Kennametal VXF100Z04C100XP07L800 Milling Cutter 0.943 Cutter Diameter Cylindrical 1.000

Part Number: WID6712973 ISO: VXF100Z04C100XP07L800 ANSI:VXF100Z04C100XP07L800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019553
Vendor: Sussex Tool and Supply
$383.43
WIDIA 6712973 Square Feed Mill End Mill Cylindrical 1.0000 Positive 0.9433 23.96MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 8.0000 203.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 0.9433 23.96MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.6314 16.04MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 49000
Neck Dia 0.8858
Max Ramp Angle 2.20°
