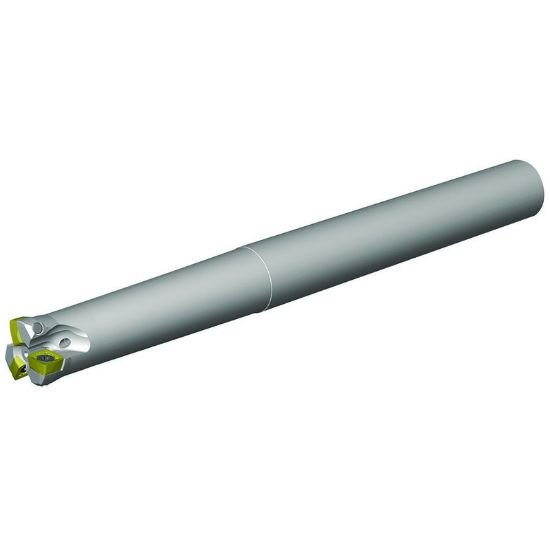

Picture of Widia/Kennametal VXF075Z03C075XP07L750 Milling Cutter 0.715 Cutter Diameter Cylindrical 0.750

Widia/Kennametal VXF075Z03C075XP07L750 Milling Cutter 0.715 Cutter Diameter Cylindrical 0.750

Part Number: WID6712972 ISO: VXF075Z03C075XP07L750 ANSI:VXF075Z03C075XP07L750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019552
Vendor: Sussex Tool and Supply
$301.86
WIDIA 6712972 Square Feed Mill End Mill Cylindrical 0.7500 Positive 0.7154 18.17MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.7500 19.05MM
Overall Length 7.5000 190.50MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7154 18.17MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.3841 9.76MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 57000
Neck Dia 0.6516
Max Ramp Angle 6.74°
