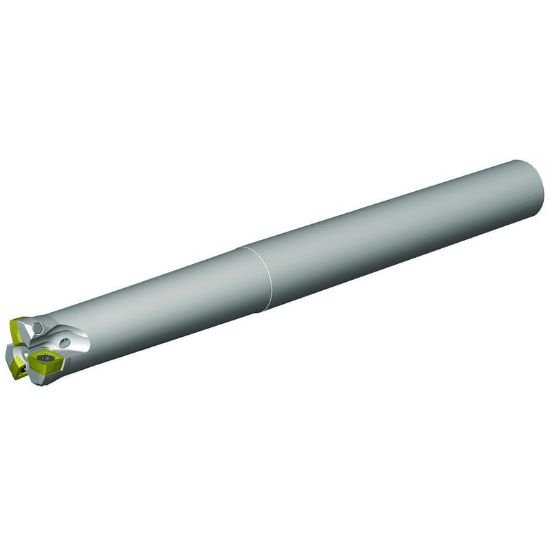

Picture of Widia/Kennametal VXF062Z02C062XP07L700 Milling Cutter 0.566 Cutter Diameter Cylindrical 0.625

Widia/Kennametal VXF062Z02C062XP07L700 Milling Cutter 0.566 Cutter Diameter Cylindrical 0.625

Part Number: WID6712971 ISO: VXF062Z02C062XP07L700 ANSI:VXF062Z02C062XP07L700

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019551
Vendor: Sussex Tool and Supply
$301.86
WIDIA 6712971 Square Feed Mill End Mill Cylindrical 0.6250 Positive 0.5667 14.39MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.6250 15.88MM
Overall Length 7.0000 177.80MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5667 14.39MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.2714 6.89MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 65000
Neck Dia 0.5112
Max Ramp Angle 8.20°
