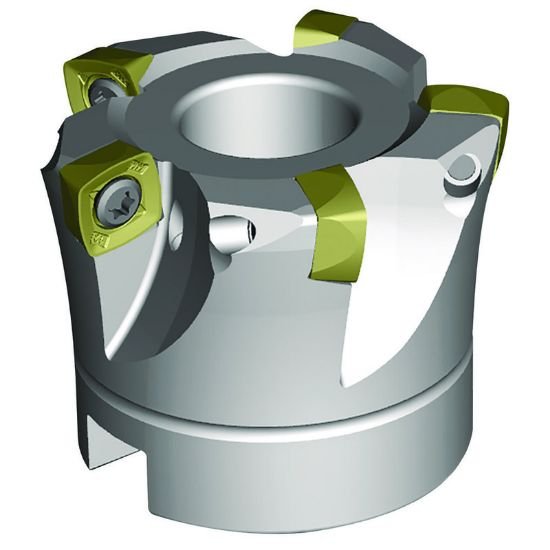

Picture of Widia/Kennametal VXF042Z05S16XD09 Milling Cutter 1.569 Cutter Diameter Face Mill 0.629

Widia/Kennametal VXF042Z05S16XD09 Milling Cutter 1.569 Cutter Diameter Face Mill 0.629

Part Number: WID6597748 ISO: VXF042Z05S16XD09 ANSI:VXF042Z05S16XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019523
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 6597748 Square Feed Mill SHELL0.6300 Positive 1.5693 39.86MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.6299 16.00MM
Overall Length 1.2600 32.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.5693 39.86MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 904
Cut Dia Min 1.1132 28.28MM
Hand Right Hand
Depth Of Cut Max 0.0591
Max RPM 34000
Max Ramp Angle 0.80°
