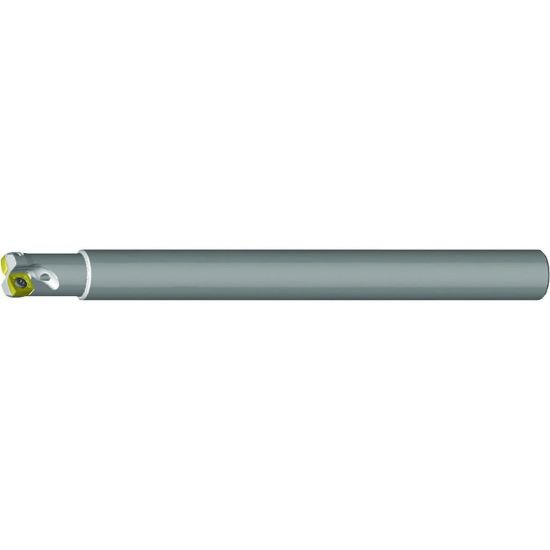

Picture of Widia/Kennametal VXF025Z04A25XP07L200 Milling Cutter 0.927 Cutter Diameter Cylindrical 0.984

Widia/Kennametal VXF025Z04A25XP07L200 Milling Cutter 0.927 Cutter Diameter Cylindrical 0.984

Part Number: WID6597157 ISO: VXF025Z04A25XP07L200 ANSI:VXF025Z04A25XP07L200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019507
Vendor: Sussex Tool and Supply
$435.23
WIDIA 6597157 Square Feed Mill End Mill Cylindrical 0.9843 Positive 0.9276 23.56MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.9843 25.00MM
Overall Length 7.8740 200.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 4
Tool Dia 0.9276 23.56MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.6157 15.64MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 49000
Neck Dia 0.8858
Max Ramp Angle 2.20°
