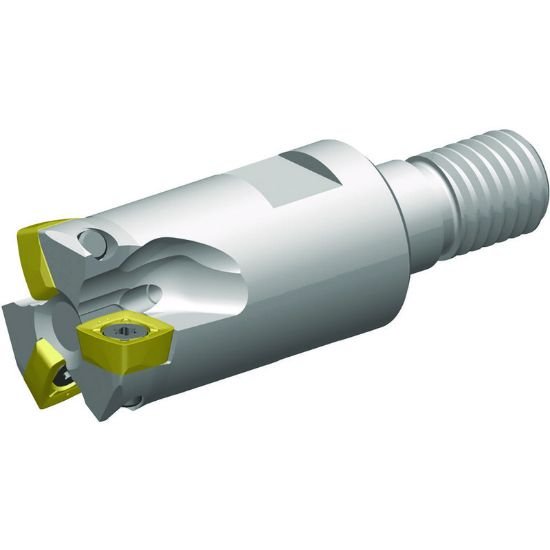

Picture of Widia/Kennametal VXF020Z03M10XP07 Milling Cutter 0.732 Cutter Diameter Screw On M10

Widia/Kennametal VXF020Z03M10XP07 Milling Cutter 0.732 Cutter Diameter Screw On M10

Part Number: WID6597151 ISO: VXF020Z03M10XP07 ANSI:VXF020Z03M10XP07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019501
Vendor: Sussex Tool and Supply
$310.19
WIDIA 6597151 Square Feed Mill Thread On SCREWM10 Positive 0.7323 18.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M10
Overall Length 2.1654 55.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 0.7323 18.60MM
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.4212 10.70MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 57000
Neck Dia 0.4134
Max Ramp Angle 3.40°
