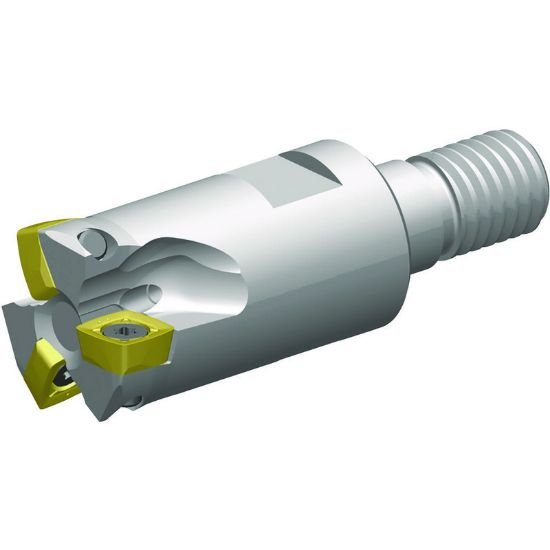

Picture of Widia/Kennametal VXF016Z02M08XP07 Milling Cutter 0.570 Cutter Diameter Screw On M08

Widia/Kennametal VXF016Z02M08XP07 Milling Cutter 0.570 Cutter Diameter Screw On M08

Part Number: WID6597130 ISO: VXF016Z02M08XP07 ANSI:VXF016Z02M08XP07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019500
Vendor: Sussex Tool and Supply
$244.10
WIDIA 6597130 Square Feed Mill Thread On SCREWM08 Positive 0.5709 14.50MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M08
Overall Length 1.6811 42.70MM
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 0.5709 14.50MM
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.2762 7.02MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 65000
Neck Dia 0.3346
Max Ramp Angle 5.90°
