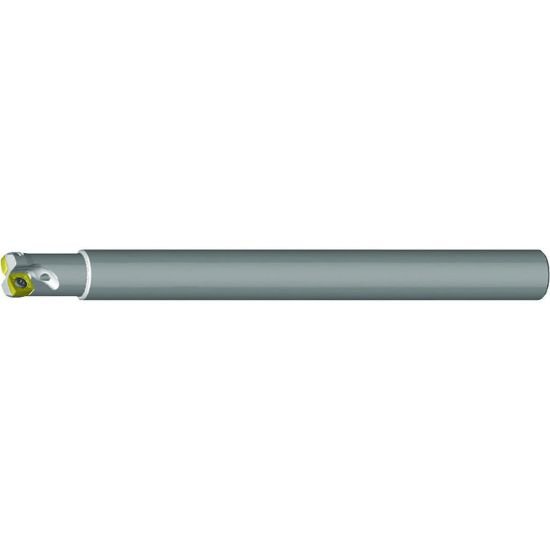

Picture of Widia/Kennametal VXF016Z02A16XP07L180 Milling Cutter 0.561 Cutter Diameter Cylindrical 0.629

Widia/Kennametal VXF016Z02A16XP07L180 Milling Cutter 0.561 Cutter Diameter Cylindrical 0.629

Part Number: WID6597154 ISO: VXF016Z02A16XP07L180 ANSI:VXF016Z02A16XP07L180

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019504
Vendor: Sussex Tool and Supply
$301.86
WIDIA 6597154 Square Feed Mill End Mill Cylindrical 0.6299 Positive 0.5612 14.25MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.6299 16.00MM
Overall Length 7.0866 180.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5612 14.25MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 703
Cut Dia Min 0.2762 7.02MM
Hand Right Hand
Depth Of Cut Max 0.0354
Max RPM 65000
Neck Dia 0.5315
Max Ramp Angle 5.90°
