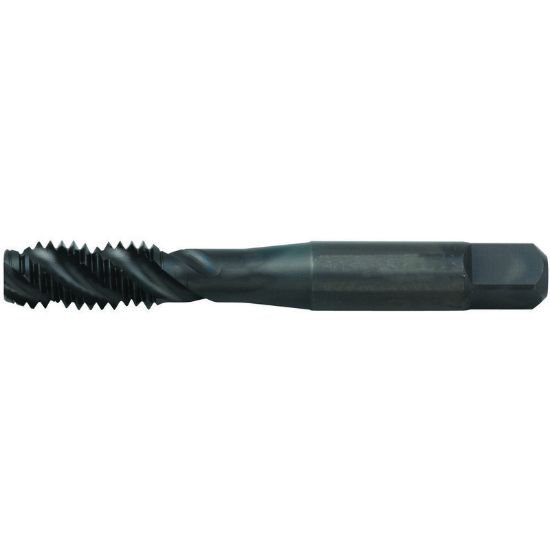

Picture of Widia/Kennametal VTSFT-TC5557 M8-1.00mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT-TC5557 M8-1.00mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT-TC5557
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$37.65
SKU: 1172087

Description

WIDIA 6140350 M8x1.00MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC D5 Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Size M8
Tap Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Tap Square 0.2360
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating DLC
Standards & Identification
Dimension Standard ANSI/ANSI
