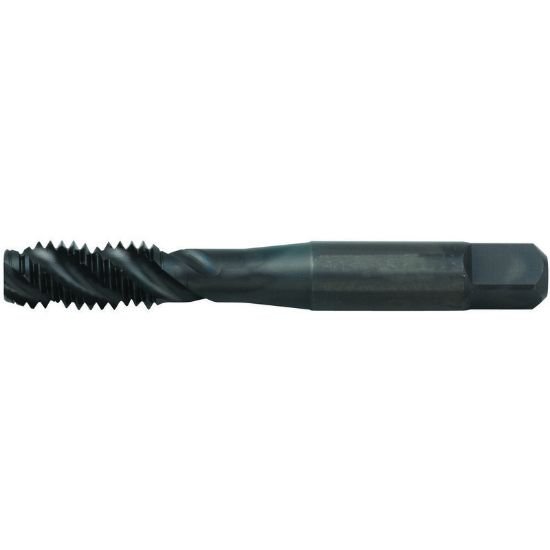

Picture of Widia/Kennametal VTSFT-TC5554 M6-1.00mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Widia/Kennametal VTSFT-TC5554 M6-1.00mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC

Part Number: WIDVTSFT-TC5554

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1172084
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 6140347 M6x1.00MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE DLC D5 Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating DLC
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1890
Tap Chamfer 1.0P-2.0P
