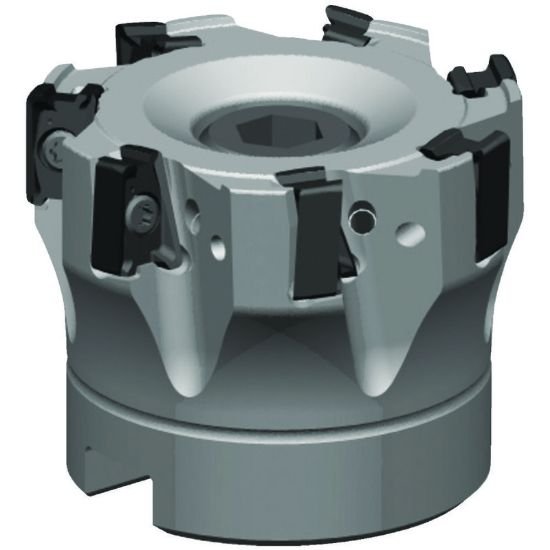

Picture of Widia/Kennametal VSM490D125Z10S381XN10JIS 90.0° Milling Cutter 4.921 Cutter Diameter Face Mill 1.500

Widia/Kennametal VSM490D125Z10S381XN10JIS 90.0° Milling Cutter 4.921 Cutter Diameter Face Mill 1.500

Part Number: WID6425493 ISO: VSM490D125Z10S381XN10JIS ANSI:VSM490D125Z10S381XN10JIS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018573
Vendor: Sussex Tool and Supply
$1,069.48
WIDIA 6425493 90.0°, End Mill SHELL1.5000 Negative 4.9210 124.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.5000 38.10MM
Overall Length 2.4800 62.99MM
Coolant Thru Thru Coolant
Flutes/Inserts 10
Tool Dia 4.9210 124.99MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.3940 10.01MM
Cut Type Roughing, Semi Finishing
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Insert Size Ic 10
Hand Right Hand
Max RPM 13500
Cutting Edge Angle 90.0°
