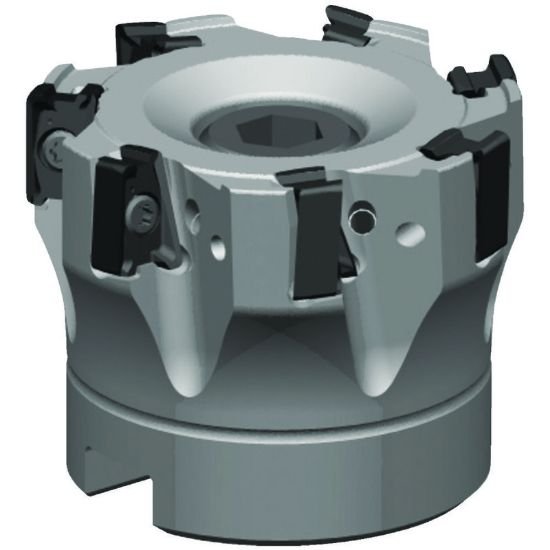

Picture of Widia/Kennametal VSM490D100Z08S3175XN10JIS 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.250

Widia/Kennametal VSM490D100Z08S3175XN10JIS 90.0° Milling Cutter 3.937 Cutter Diameter Face Mill 1.250

Part Number: WID6425492 ISO: VSM490D100Z08S3175XN10JIS ANSI:VSM490D100Z08S3175XN10JIS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018572
Vendor: Sussex Tool and Supply
$798.42
WIDIA 6425492 90.0°, End Mill SHELL1.2500 Negative 3.9370 100.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.2500 31.75MM
Overall Length 1.9680 49.99MM
Coolant Thru Thru Coolant
Flutes/Inserts 8
Tool Dia 3.9370 100.00MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.3940 10.01MM
Cut Type Roughing, Semi Finishing
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Insert Size Ic 10
Hand Right Hand
Max RPM 15200
Cutting Edge Angle 90.0°
