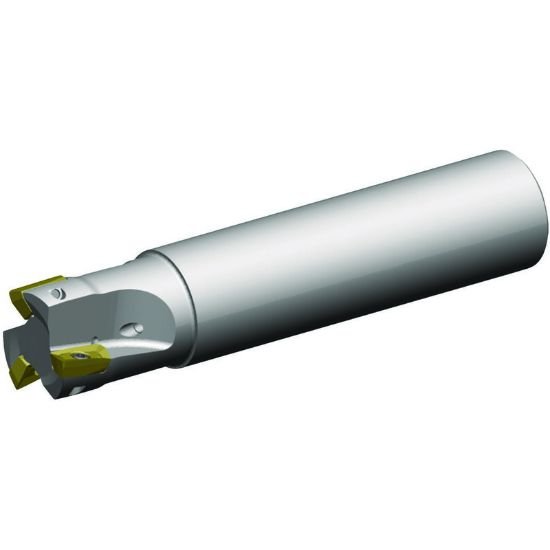

Picture of Widia/Kennametal VSM17D025Z02A25XD17L170 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

Widia/Kennametal VSM17D025Z02A25XD17L170 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

Part Number: WID5988056 0.984 x 0.984 x 0.647 x 6.693 ISO: VSM17D025Z02A25XD17L170 ANSI:VSM17D025Z02A25XD17L170

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018292
Vendor: Sussex Tool and Supply
$347.41
WIDIA 5988056 90.0°, Face Mill End Mill Cylindrical 0.9843 Positive 0.9840 24.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.9843 25.00MM
Overall Length 6.6930 170.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Tool Dia 0.9840 24.99MM
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.6470 16.43MM
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 17
Hand Right Hand
Max RPM 41800
Cutting Edge Angle 90.0°
