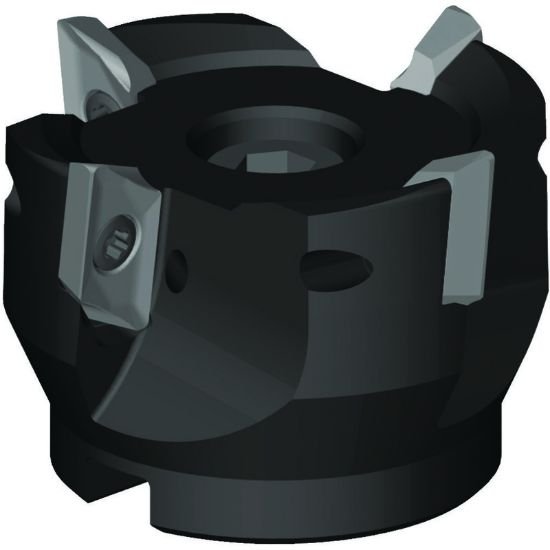

Picture of Widia/Kennametal VHSC400Z05S125XD16 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

Widia/Kennametal VHSC400Z05S125XD16 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

Part Number: WID6425433 ISO: VHSC400Z05S125XD16 ANSI:VHSC400Z05S125XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018525
Vendor: Sussex Tool and Supply
$742.03
WIDIA 6425433 90.0°, End Mill SHELL1.2500 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.2500 31.75MM
Overall Length 1.9685 50.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.6300 16.00MM
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 23000
Cutting Edge Angle 90.0°
