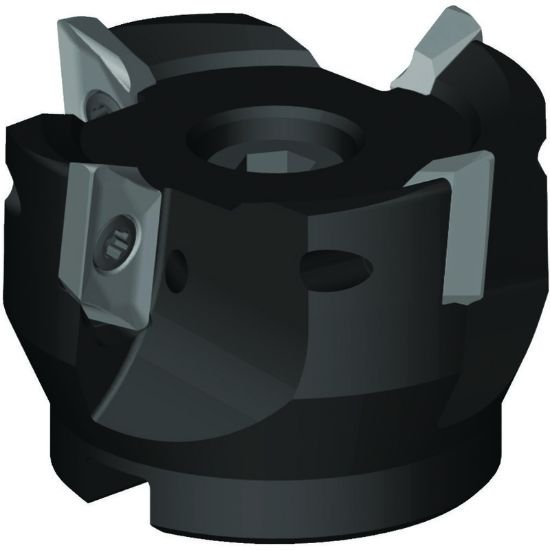

Picture of Widia/Kennametal VHSC150Z03S050XD16 90.0° Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

Widia/Kennametal VHSC150Z03S050XD16 90.0° Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

Part Number: WID6425429 ISO: VHSC150Z03S050XD16 ANSI:VHSC150Z03S050XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018521
Vendor: Sussex Tool and Supply
$507.76
WIDIA 6425429 90.0°, Face Mill SHELL0.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.5000 12.70MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.6300 16.00MM
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 36500
Cutting Edge Angle 90.0°
