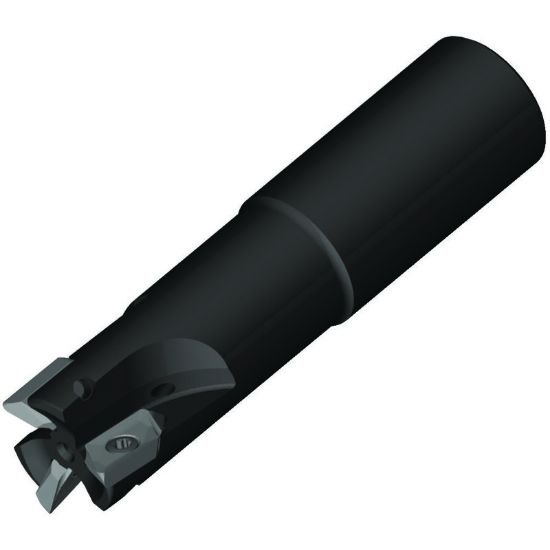

Picture of Widia/Kennametal VHSC150Z03C150XD16 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.500

Widia/Kennametal VHSC150Z03C150XD16 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.500

Part Number: WID6425428 1.500 x 1.500 x 0.630 x 6.030 ISO: VHSC150Z03C150XD16 ANSI:VHSC150Z03C150XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018520
Vendor: Sussex Tool and Supply
$598.52
WIDIA 6425428 90.0°, Face Mill End Mill Cylindrical 1.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.5000 38.10MM
Overall Length 6.0300 153.16MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.6300 16.00MM
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 36500
Cutting Edge Angle 90.0°
