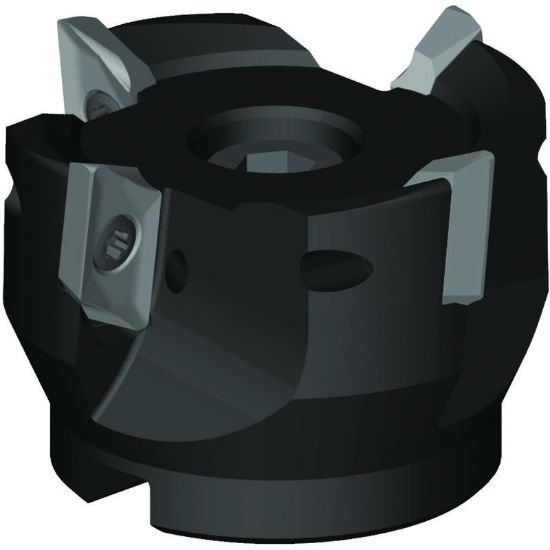

Picture of Widia/Kennametal VHSC080Z05S27XD16 90.0° Milling Cutter 3.149 Cutter Diameter Face Mill 1.063

Widia/Kennametal VHSC080Z05S27XD16 90.0° Milling Cutter 3.149 Cutter Diameter Face Mill 1.063

Part Number: WID6425294 ISO: VHSC080Z05S27XD16 ANSI:VHSC080Z05S27XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018470
Vendor: Sussex Tool and Supply
$692.96
WIDIA 6425294 90.0°, Face Mill SHELL1.0630 Positive 3.1490 79.98MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0630 27.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 3.1490 79.98MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.6300 16.00MM
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 22500
Cutting Edge Angle 90.0°
