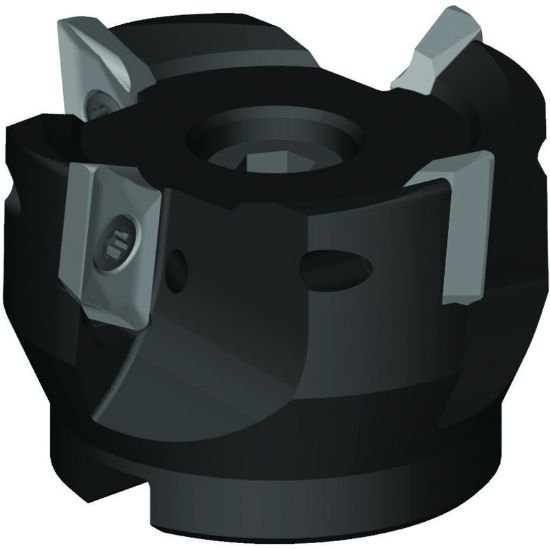

Picture of Widia/Kennametal VHSC063Z04S22XD16 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

Widia/Kennametal VHSC063Z04S22XD16 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

Part Number: WID6425293 ISO: VHSC063Z04S22XD16 ANSI:VHSC063Z04S22XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1018469
Vendor: Sussex Tool and Supply
$603.43
WIDIA 6425293 90.0°, Face Mill SHELL0.8661 Positive 2.4803 63.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.8661 22.00MM
Overall Length 1.7717 45.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 2.4803 63.00MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Length Of Cut 0.6300 16.00MM
Cut Type Roughing, Semi Finishing
Insert Style XD
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 16
Hand Right Hand
Max RPM 26000
Cutting Edge Angle 90.0°
