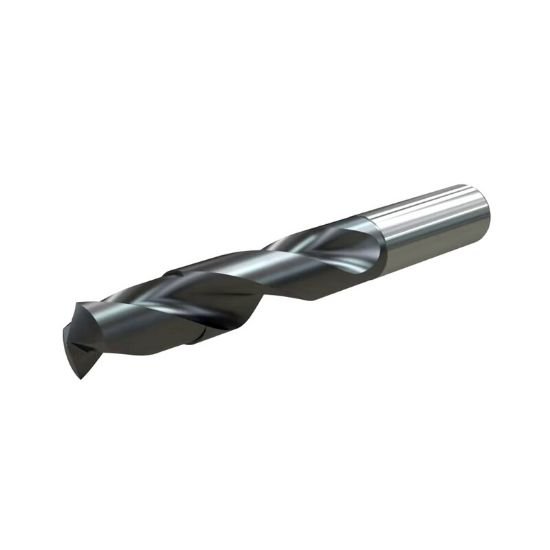

Widia/Kennametal VDS202A19050 SC Drill 19,05mm/.7500/ 5XD

Part Number: WID4148324

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1141510
$353.81
WIDIA 4148324 Carbide Dr SC DRILL 19,05MM/.7500/ 5XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 6.0200 152.91MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool Drill
Grade WU25PD
Included Angle 140°
Flute Length 3.0300 76.96MM
Cut Dia Min 0.7500 19.05MM - 3/4
Dia Deep 4.0x Dia
