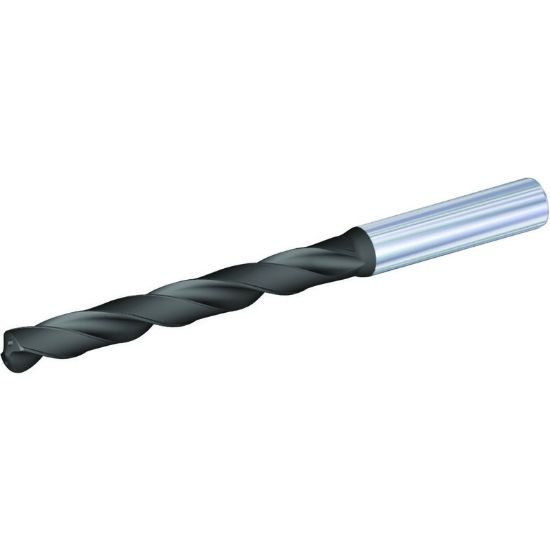

Picture of Widia/Kennametal TDS453A07100 SC Drill 7,1mm/.2795/ 8XD

Widia/Kennametal TDS453A07100 SC Drill 7,1mm/.2795/ 8XD

Part Number: WID6328305

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140585
Vendor: Sussex Tool and Supply
$180.54
WIDIA 6328305 Deep Hole SC DRILL 7,1MM/.2795/ 8XD Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless
Coating ALTIN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 4.4500 113.03MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2795 7.10MM
Type Of Tool Drill
Grade WM15PD
Included Angle 130°
Flute Length 2.5200 64.01MM
Cut Dia Min 0.2795 7.10MM
Dia Deep 9.0x Dia
