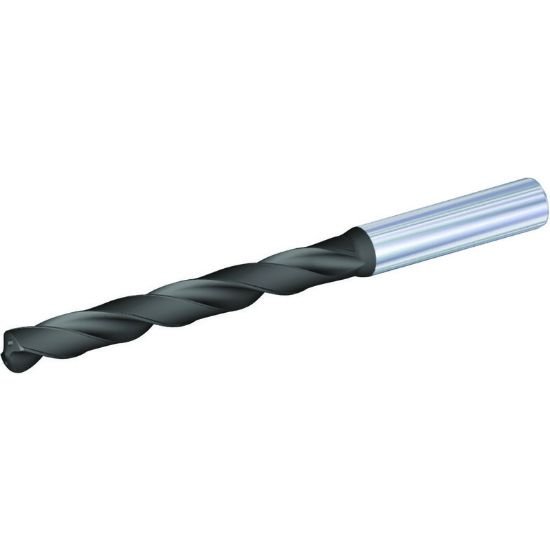

Picture of Widia/Kennametal TDS413A15200 SC Drill 15,2mm/.5984/ 8XD

Widia/Kennametal TDS413A15200 SC Drill 15,2mm/.5984/ 8XD

Part Number: WID4156938

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1138956
Vendor: Sussex Tool and Supply
$713.74
WIDIA 4156938 Carbide Dr SC DRILL 15,2MM/.5984/ 8XD Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, Ductile Iron
Coating ALCrN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 6.7323 171.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5984 15.20MM
Type Of Tool Drill
Grade WK15PD
Included Angle 140°
Flute Length 3.9760 100.99MM
Cut Dia Min 0.5984 15.20MM
