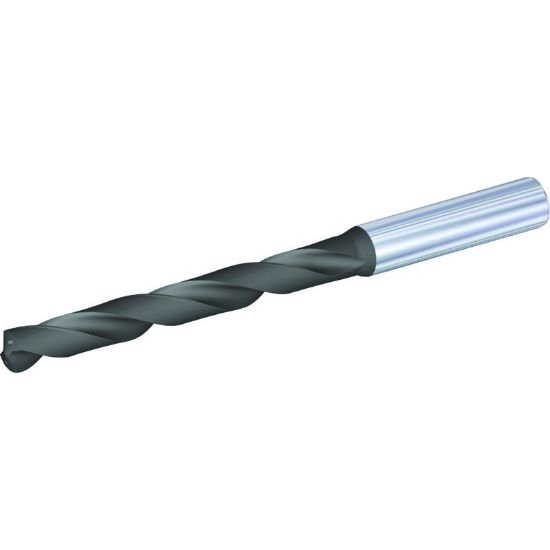

Widia/Kennametal TDS403A17800 SC Drill 17,8mm/.7008/ 8XD

Part Number: WID4162793

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1139488
$999.24
WIDIA 4162793 Carbide Dr SC DRILL 17,8MM/.7008/ 8XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <55HRC Steel
Coating TiAlN
Mach Side Connection Size 0.7087 18.00MM
Overall Length 7.2835 185.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.7007 17.80MM
Type Of Tool Drill
Grade WP20PD
Included Angle 140°
Flute Length 4.4490 113.00MM
Cut Dia Min 0.7007 17.80MM
