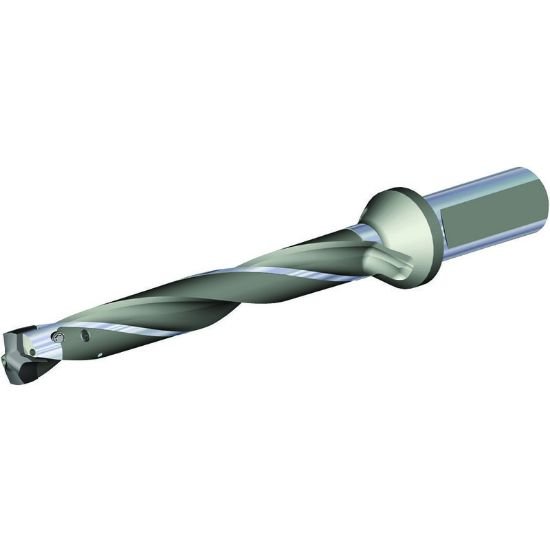

Picture of Widia/Kennametal TDMX360R8SL40M TDMX Drill Body D=36mm 8XD SL

Widia/Kennametal TDMX360R8SL40M TDMX Drill Body D=36mm 8XD SL

Part Number: WID6572183

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140881
Vendor: Sussex Tool and Supply
$969.65
WIDIA 6572183 Indexable TDMX DRILL BODY D=36MM 8XD SL Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.5748 40.00MM
Overall Length 17.1654 436.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 2
Tool Dia 1.4173 36.00MM
Type Of Tool Drill
Flute Length 11.9690 304.01MM
Cut Dia Min 1.4173 36.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.4960 38.00MM
