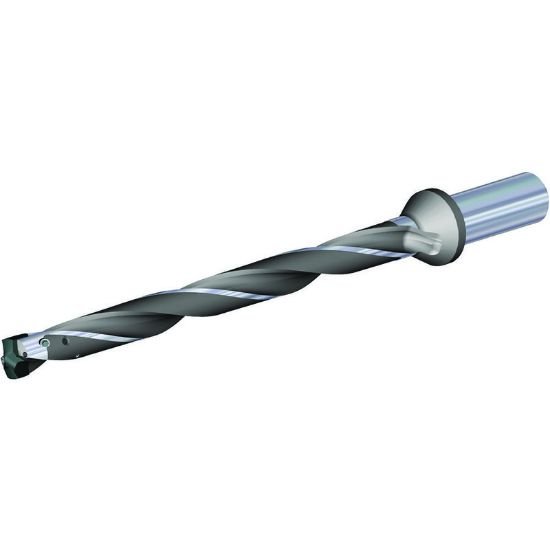

Picture of Widia/Kennametal TDMX300R12SF32M TDMX Body D=30mm 12XD SF Shank

Widia/Kennametal TDMX300R12SF32M TDMX Body D=30mm 12XD SF Shank

Part Number: WID6681052

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1141005
Vendor: Sussex Tool and Supply
$1,081.77
WIDIA 6681052 Indexable TDMX BODY D=30MM 12XD SF SHANK Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2598 32.00MM
Overall Length 19.0157 483.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Tool Dia 1.1811 30.00MM
Type Of Tool Drill
Flute Length 14.6460 372.01MM
Cut Dia Min 1.1811 30.00MM
Dia Deep 12.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.2204 31.00MM
