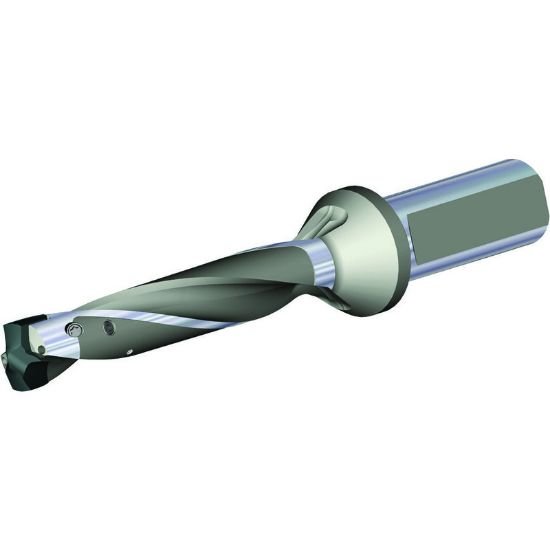

Picture of Widia/Kennametal TDMX1497R5SL150 TDMX Drill Body D1.497 5XD SL

Widia/Kennametal TDMX1497R5SL150 TDMX Drill Body D1.497 5XD SL

Part Number: WID6572246

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140922
Vendor: Sussex Tool and Supply
$1,018.13
WIDIA 6572246 Indexable TDMX DRILL BODY D1.497 5XD SL Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.5000 38.10MM
Overall Length 13.1890 335.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 0.4961 12.60MM
Type Of Tool Drill
Flute Length 7.8740 200.00MM
Cut Dia Min 0.4961 12.60MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.5750 40.01MM
