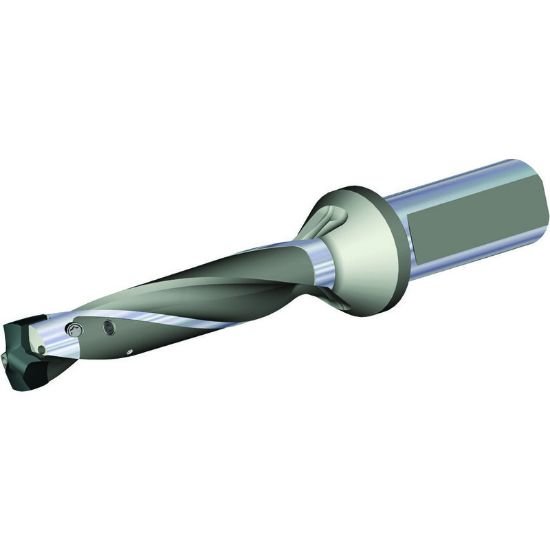

Picture of Widia/Kennametal TDMX1339R5SL150 TDMX Drill Body D1.339 5XD SL

Widia/Kennametal TDMX1339R5SL150 TDMX Drill Body D1.339 5XD SL

Part Number: WID6572244

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140920
Vendor: Sussex Tool and Supply
$884.81
WIDIA 6572244 Indexable TDMX DRILL BODY D1.339 5XD SL Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.5000 38.10MM
Overall Length 12.1654 309.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 1.3386 34.00MM
Type Of Tool Drill
Flute Length 7.0870 180.01MM
Cut Dia Min 1.3386 34.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.4173 36.00MM
