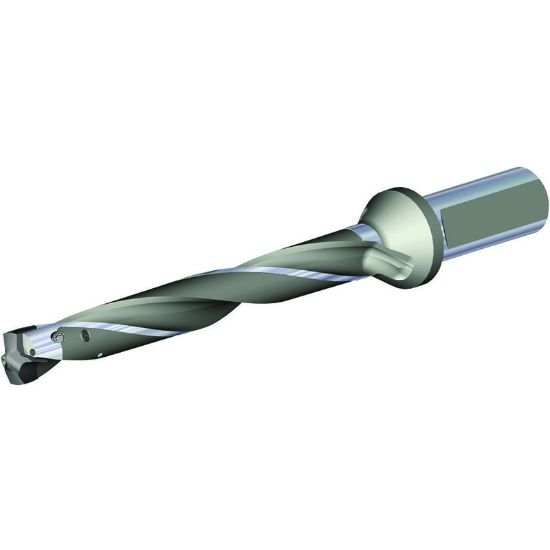

Picture of Widia/Kennametal TDMX1142R8SL125 TDMX Drill Body D1.142 8XD SL

Widia/Kennametal TDMX1142R8SL125 TDMX Drill Body D1.142 8XD SL

Part Number: WID6572260

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1140936
Vendor: Sussex Tool and Supply
$884.81
WIDIA 6572260 Indexable TDMX DRILL BODY D1.142 8XD SL Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 13.7795 350.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.1417 29.00MM
Type Of Tool Drill
Flute Length 9.4490 240.00MM
Cut Dia Min 1.1417 29.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.1810 30.00MM
