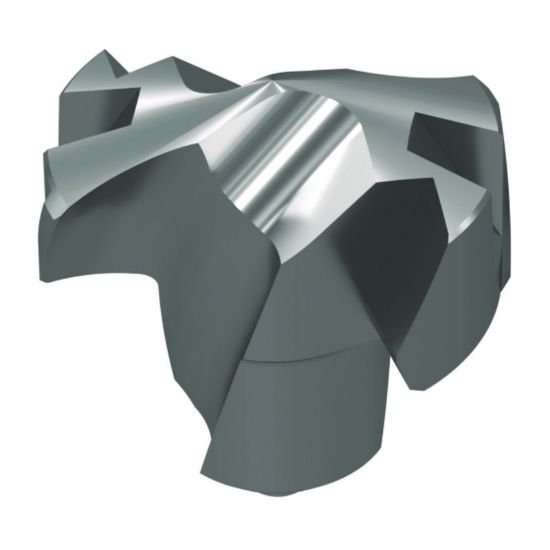

Picture of Widia/Kennametal TDM1010UPowder Metal TDM Insert Blade UP(M) D=10.10

Widia/Kennametal TDM1010UPowder Metal TDM Insert Blade UP(M) D=10.10

Part Number: WID3849052
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1137333
Vendor: Sussex Tool and Supply
$103.59

Description

WIDIA 3849052 Indexable Drill TiAlN 0.3976 10.10MM Cutter Dia Insert Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Insert
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.3976 10.10MM
Dia Deep 3.0x Dia, 5.0x Dia, 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Cut Dia Min 0.3976 10.10MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
Grade WU25PD
