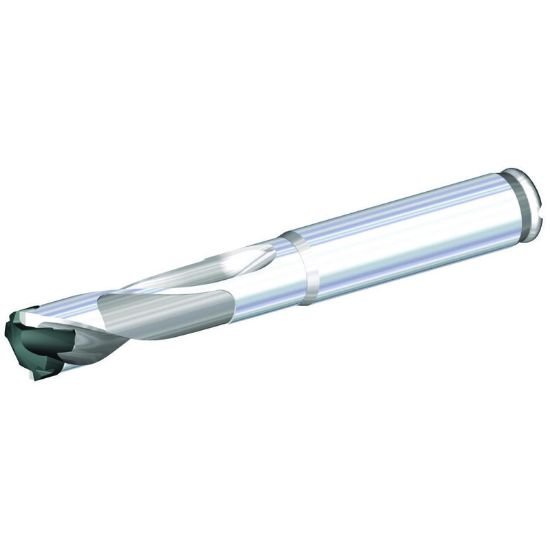

Picture of Widia/Kennametal TDM0394R3SS044 TDM1 Drill Body 3XD D=0.3937

Widia/Kennametal TDM0394R3SS044 TDM1 Drill Body 3XD D=0.3937

Part Number: WID3851548

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1137547
Vendor: Sussex Tool and Supply
$211.56
WIDIA 3851548 Indexable Drill TDM1 DRILL BODY 3XD D=0.3937 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.4375 11.11MM
Overall Length 3.6250 92.08MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Type Of Tool Drill
Flute Length 1.2400 31.50MM
Cut Dia Min 0.3937 10.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.4130 10.50MM
