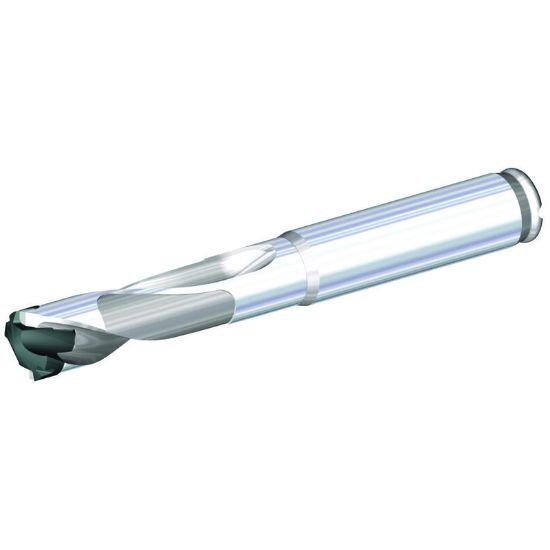

Picture of Widia/Kennametal TDM0374R3SS038 TDM1 Drill Body 3XD D=0.3740

Widia/Kennametal TDM0374R3SS038 TDM1 Drill Body 3XD D=0.3740

Part Number: WID3851544

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1137543
Vendor: Sussex Tool and Supply
$211.56
WIDIA 3851544 Indexable Drill TDM1 DRILL BODY 3XD D=0.3740 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.3752 85.73MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Type Of Tool Drill
Flute Length 1.1800 29.97MM
Cut Dia Min 0.3750 9.53MM - 3/8
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3936 10.00MM
