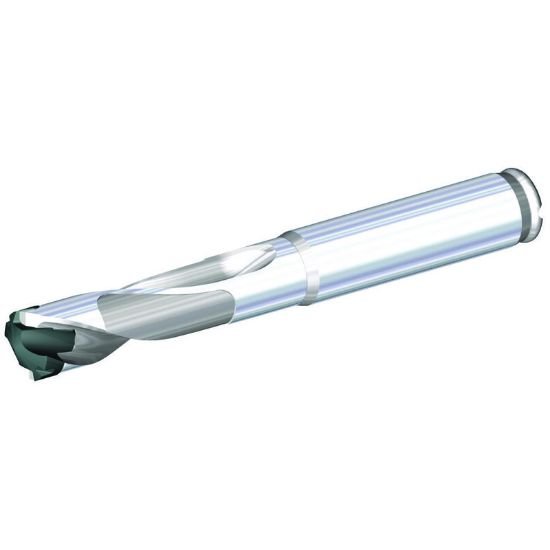

Picture of Widia/Kennametal TDM0354R3SS038 TDM1 Drill Body 3XD D=0.3543

Widia/Kennametal TDM0354R3SS038 TDM1 Drill Body 3XD D=0.3543

Part Number: WID3851482

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1137541
Vendor: Sussex Tool and Supply
$211.56
WIDIA 3851482 Indexable Drill TDM1 DRILL BODY 3XD D=0.3543 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.3750 85.73MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3543 9.00MM
Type Of Tool Drill
Flute Length 1.1200 28.45MM
Cut Dia Min 0.3543 9.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3736 9.49MM
