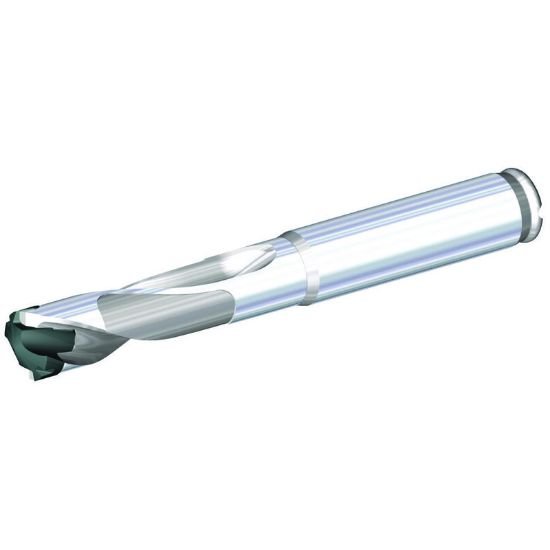

Picture of Widia/Kennametal TDM0335R3SS038 TDM1 Drill Body 3XD D=0.3346

Widia/Kennametal TDM0335R3SS038 TDM1 Drill Body 3XD D=0.3346

Part Number: WID3851480

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1137539
Vendor: Sussex Tool and Supply
$211.56
WIDIA 3851480 Indexable Drill TDM1 DRILL BODY 3XD D=0.3346 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.2500 82.55MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3346 8.50MM
Type Of Tool Drill
Flute Length 1.0590 26.90MM
Cut Dia Min 0.3346 8.50MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3539 8.99MM
