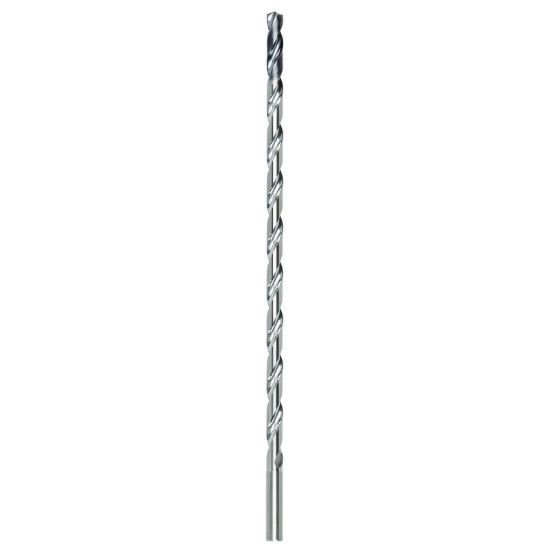

Widia/Kennametal TDD108Z07500 SC Drill XL 7,5mm/.2953/ 30XD

Part Number: WID3899601

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1137610
$572.29
WIDIA 3899601 Deep Hole SC DRILL XL 7,5MM/.2953/ 30XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 11.8504 301.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2950 7.49MM - M
Type Of Tool Drill
Grade WU20PD
Included Angle 132°
Flute Length 9.1340 232.00MM
Cut Dia Min 0.2950 7.49MM - M
Dia Deep 30.0x Dia
